None Touch Depaneling Solution Dual Table PCB Laser Cutting Machine
Laser PCB Depaneling Machine Dual Table Solid-State UV Lasers Machine Offline
PCB Laser Cutting Machine Features
1. High-precision: Low-drift galvanometer combined with fast ironless linear motor system platform for fast cutting. Keep high precision in micrometers.
2. Easy to learn: Self-developed Windows control system, easy-to-use Chinese/English interface, and friendly Views, powerful and diverse, easy to operate.
3. Intelligent Automated: Using high-precision CCD to automatically locate and focus, positioning is fast and accurate, without manual intervention, simple operation, realizes the one-button mode of the same type, greatly improves production efficiency. Automatic galvanometer correction, autofocus, full implementation Automation, using laser displacement sensor to automatically adjust the height of the focus to the table, to achieve rapid alignment, saving time.
4. Suitable for cutting: FPC, PCB, chip cutting, cell phone camera module.
Fragments, layers, blocks, or selected areas are cut and formed directly. The cutting edges are neat, smooth, smooth, and free of burrs.
Overfilled plastic. Products can be arranged in a matrix for automatic positioning and cutting, especially for fine, difficult, and complex patterns.
5. High-performance lasers: Adopting solid-state UV lasers from international brands, with good beam quality and focused spot. Small, uniform power distribution, small thermal effect, small kerf width, high cutting quality, etc.
PCB Laser Cutting Machine Parameter
| Parameter |
|
|
Technical parameters
|
The main body of the laser |
1480mm*1360mm*1412 mm |
| Weight of machine |
1500Kg |
| Power |
AC220 V |
| Laser |
355 nm |
| Laser |
Optowave 10W(US)
|
| Material |
≤1.2 mm |
| Precision |
±20 μm |
| Platform |
±2 μm |
| Platform |
±2 μm |
| Working area |
600*450 mm |
| Maximum |
3 KW |
| Vibrating |
CTI(US) |
| Power |
AC220 V |
| Diameter |
20±5 μm |
| Ambient |
20±2 ℃ |
| Ambient |
＜60 % |
| The Machine |
Marble |
PCB Laser Cutting Machine Advantages
High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, saves time and no worries.
Friendly interface, Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
Reduce energy consumption, Cost savings.
Cost-effective, fast cutting speed, stable performance.
PCB Laser PCB Cutting Machine Application
FPC and some relative materials;
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.
Product Tags:
|
|

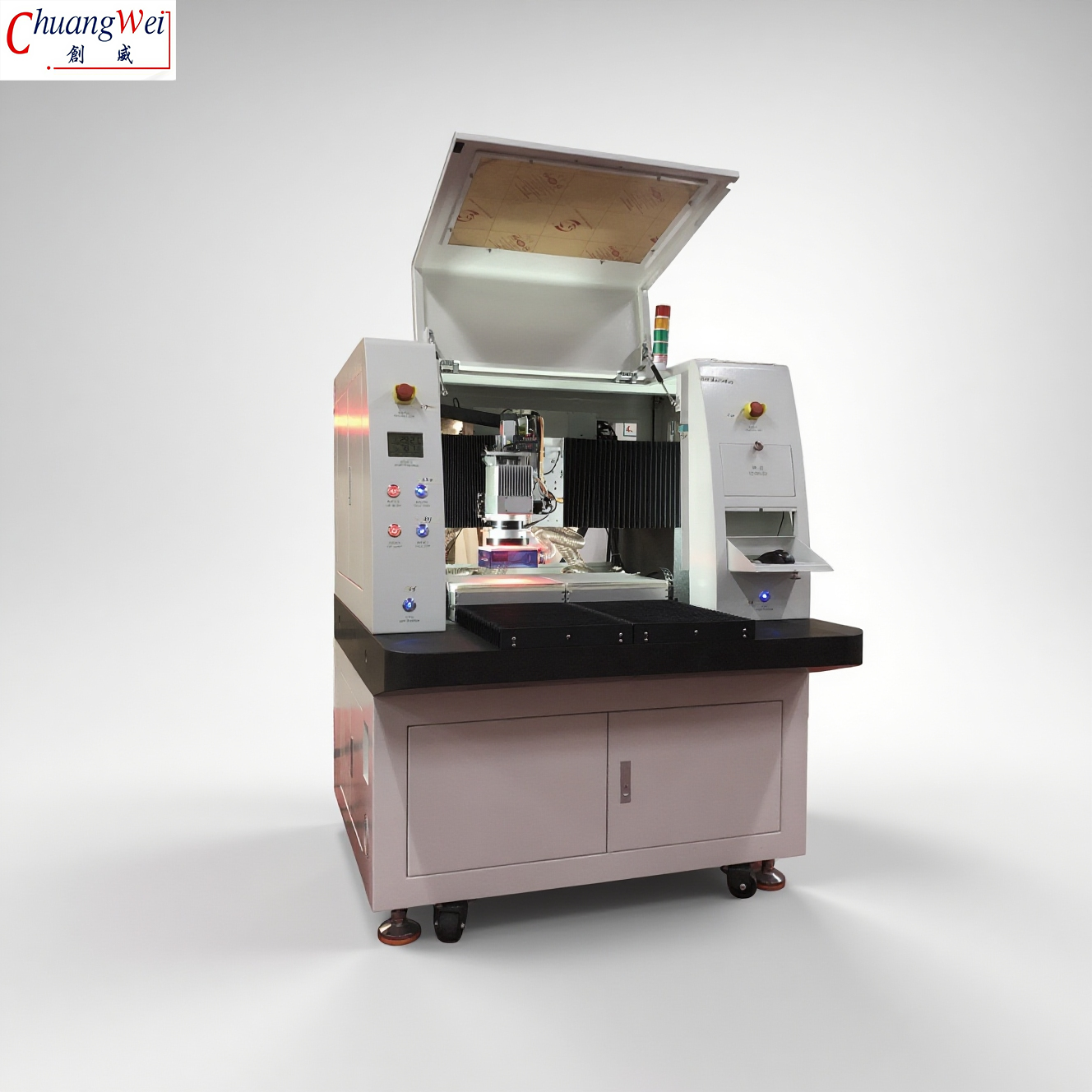

15W PCB Depanelizer Machine High Precision Circuit Board Depaneling Machine Images
|
